• Quickly reduces heat around the laser head


• Removes debris around the contact point
• More smooth lines, More complete patterns, More clean surfaces

      Product Manual

Advantages:

1. The air assist pump kit quickly reduces heat around the laser head and removes debris around the contact point, you will get better results with smooth lines, complete patterns, and clean material surfaces.

2. A laser air assist kit can effectively remove the smoke and dust generated in the process of laser engraving, prevent laser energy attenuation, and ensure the stability of laser energy, helping the engraver to cut faster and deeper.

3. LONGER air-assist kit for laser cutter is designed for a laser engraver air assist system. It is portable and lightweight so that it can be taken to anywhere conveniently and will not take up much space.

4. This air pump can protect your laser from residue buildup and overheating to improve the service life of the laser module.

5. Easy to install and use, Reference to the user manual, you can simply plug and use this air pump.

6. The noise of the air-assist unit when working is 60 decibels, which is lower than the working sound of the fan. The air assist unit can provide you with a quiet laser engraving environment.

Specifications for the air pump:
Rated voltage:    AC 220V/110V 50HZ
Max power:    16W
Max pressure:    0.03 MPa
Max air flow:    30 L/min
Air Outlet Diameter:    1/8 inch
Air Pump Noise Test Data: <60db

Specifications for the air assit:
Compatible laser module: LONGER 10W laser module LC40F50
Air Nozzle Diameter: 2.5 mm
quick coupling specs: PC6-M8
Air tube size: 4x6mm (inner diameter x outer diameter); 1.5 m length
Air tube material: black; silicon

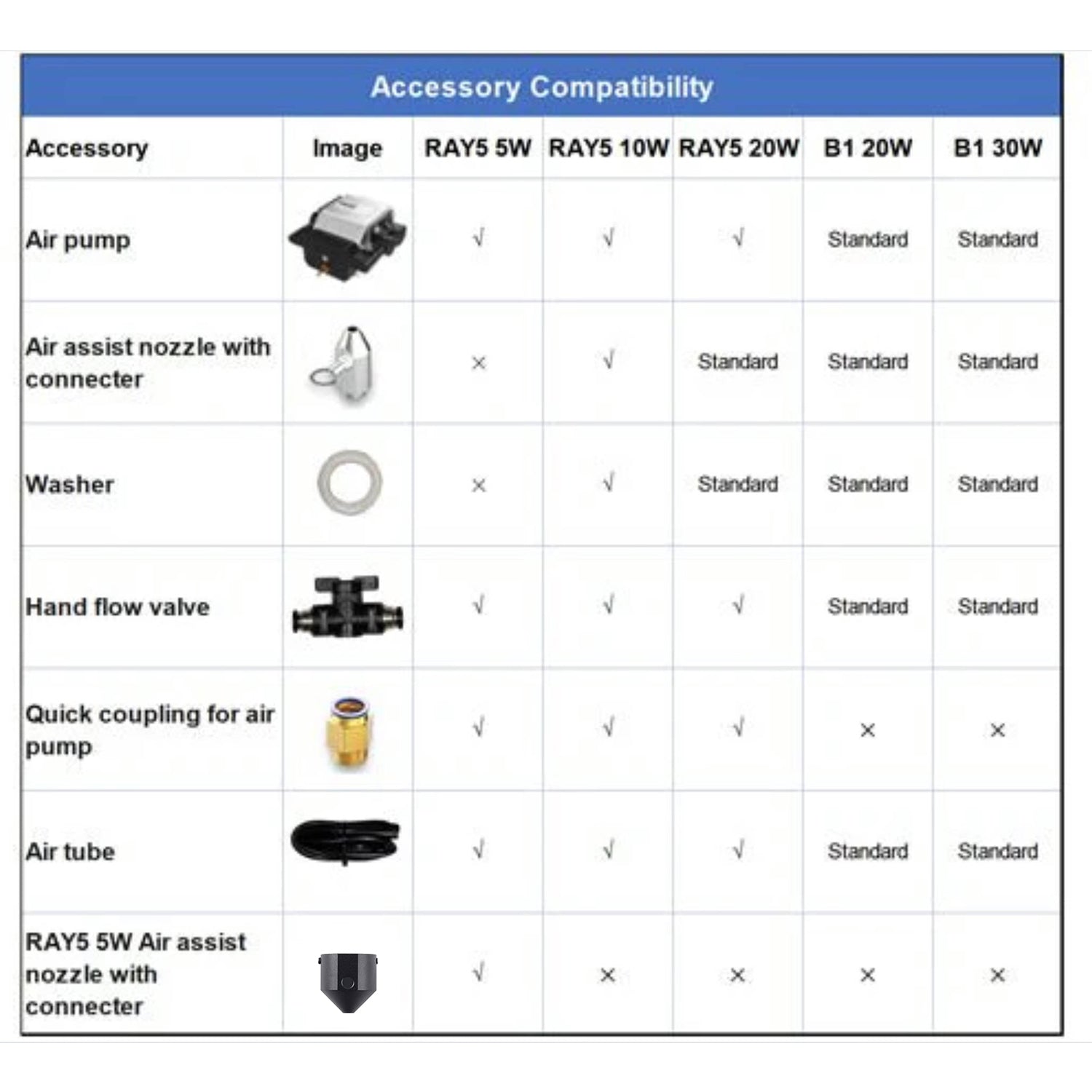

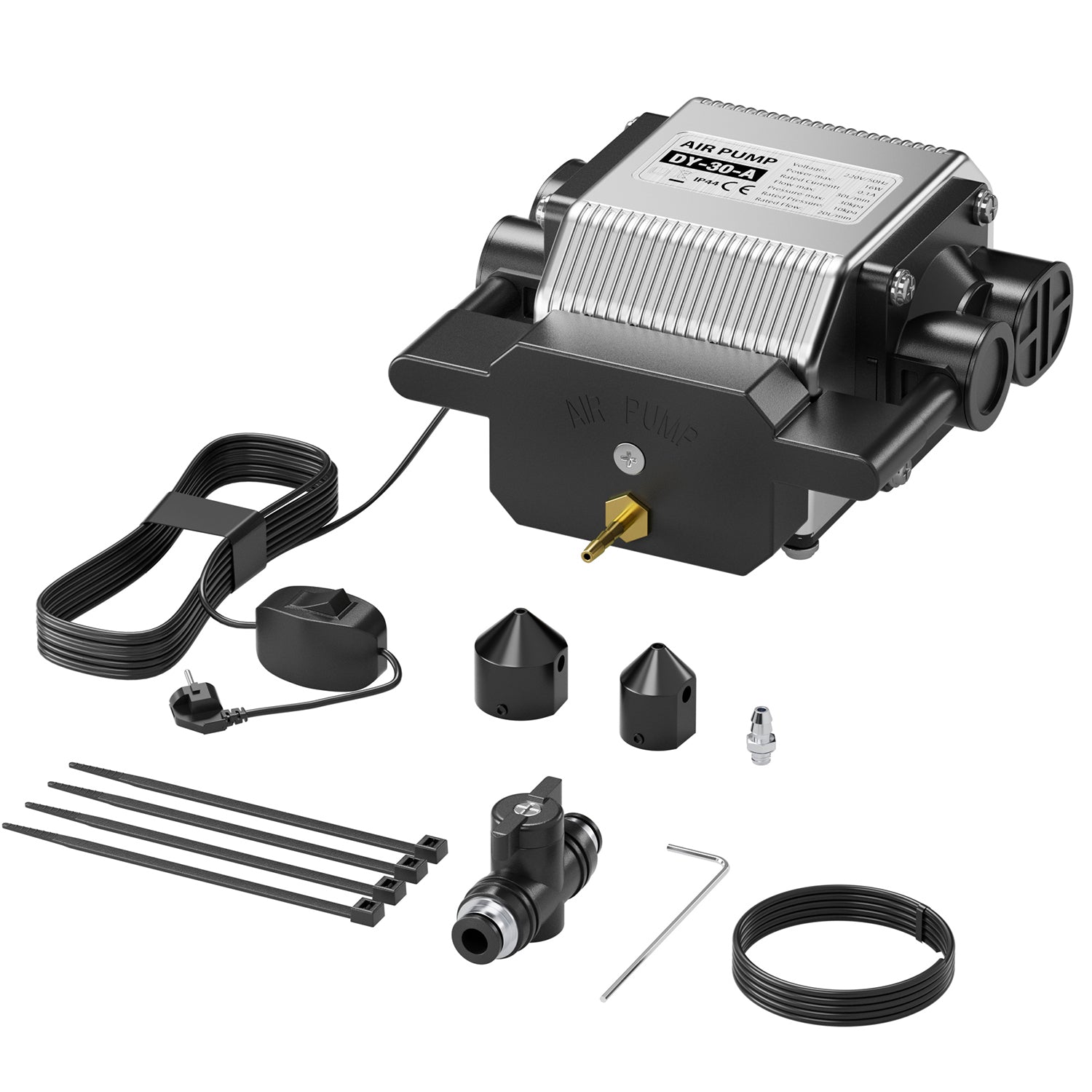

Package List:
1x air pump;
1x air assist nozzle with connecter;
1x washer;
1x hand flow valve;
1x quick coupling for air pump;
1x 1.5m air tube;
